Striker Hammer Catalog Stuff 2010

This was a list of the latest new parts Striker added to their new parts inventory for Striker Air Hammers back in 2010. Unfortunately the owner got caught up in the housing mortgage crisis of 2008 and had to sell their business.

[Home]  [Back to Air Hammers Links Page]  [Back to Striker STC-88]  [Fabricated Adjustable Throttle Stop]  [Photos of STC088 Working]  [Additional new parts in 2010]



Dies (Upper & Lower)

                        Flat     Wide flat     Combo    Wide Combo     Blank     Wide blank

STC-55 (25kg)  X         X                 X                 X                  X             X

STC-88 (40kg)  X         X                 X                 X                 X             X

65 kg                 X         X                 X                 X                  X             X

75 kg                 X         X                 X                 X                 X              X

150 kg               X         X

Wedges for dies (upper & lower)

                    Wedge (Upper die)             Wedge (Lower die)

STC-55                 X                                         X

STC-88                 X                                         X

65 kg                     X                                         X

75 kg                     X                                         X

150 kg                   X                                         X



Parts

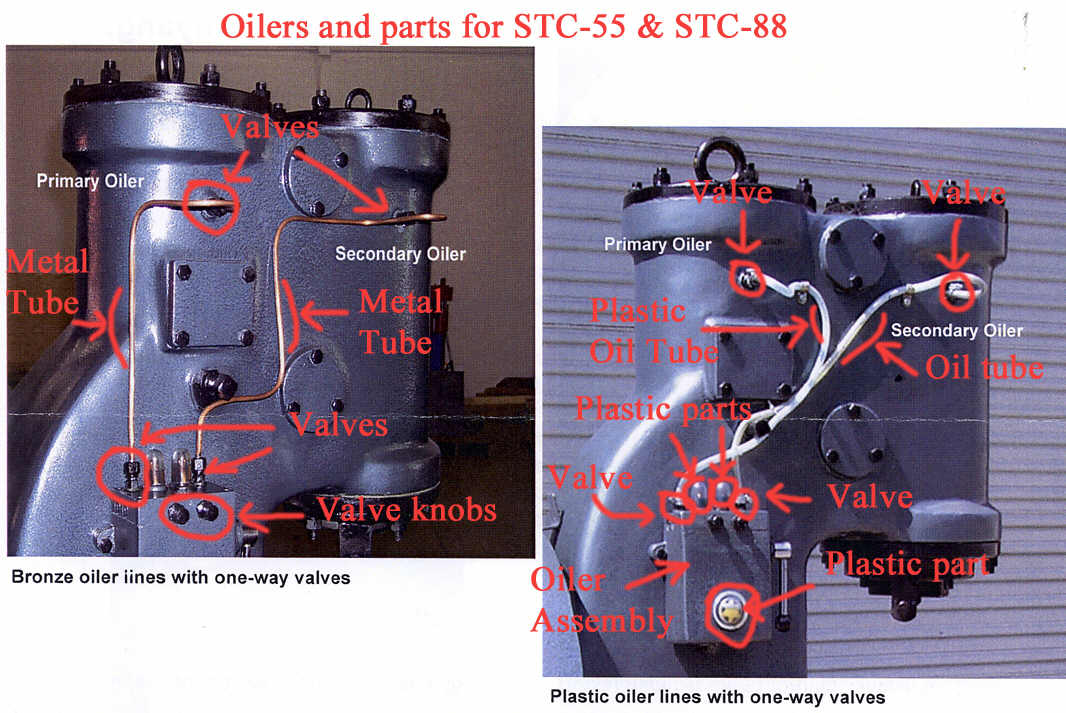

Oiler Assembly                                             X                         X

Oiler Assembly                                             X                         X

Oiler tubing (bulk tubing 10-30meters ?)       X                         X

Oiler check valves (hammer cylinder)             X                         X

Oiler check valves (top of oiler assembly)      X                         X

Plastic parts for oiler (See pictures)                 X                         X

Valve needle for oiler                                     X                         X

Sump fitting (oil drain fitting)                            X                         X

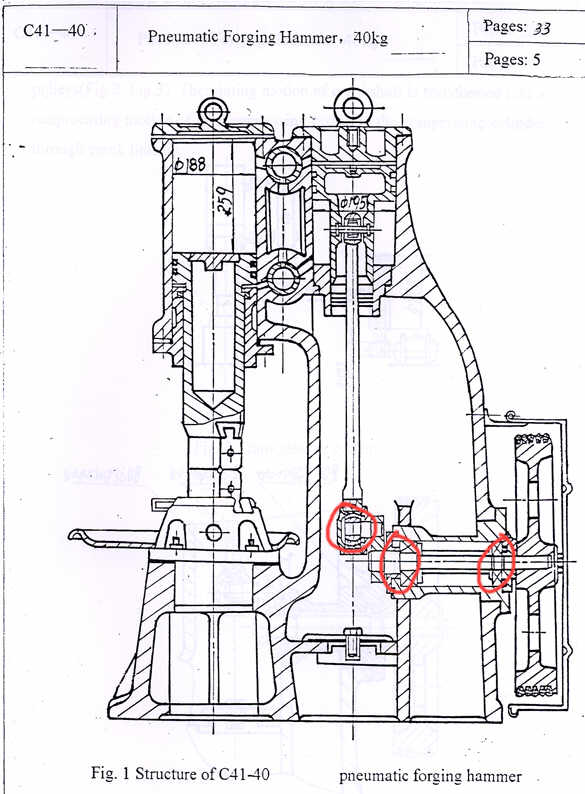

Ball bearings for crank shaft and piston shaft inside hammer

                                                                      X                         X                                                 X

Spring – for treadle                                         X                         X                                                 X

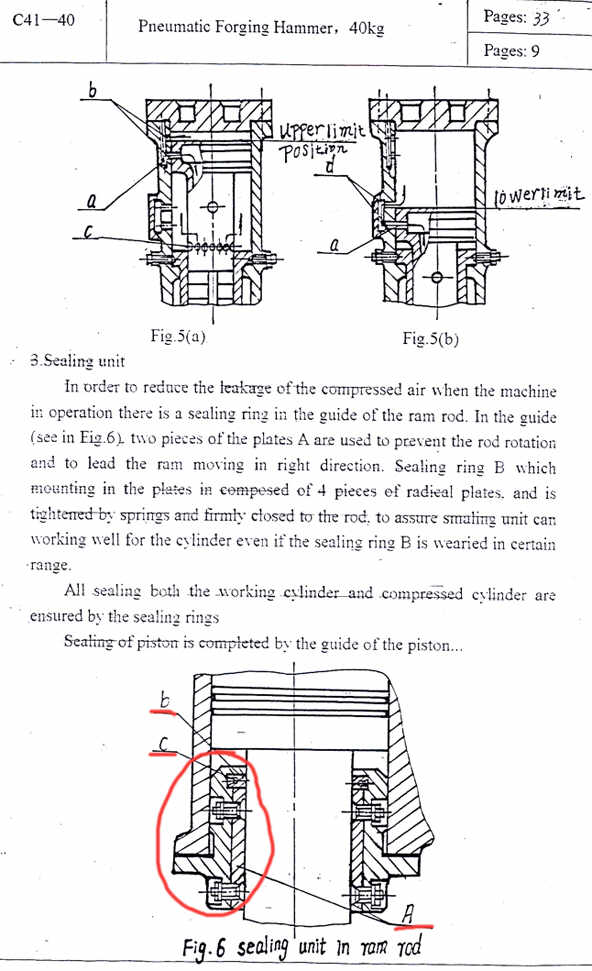

Front ram seal (4 parts – see picture)              X                         X

Compressor cylinder seal unit parts (see picture) X                     X

Piston (Ram)                                                                             X
